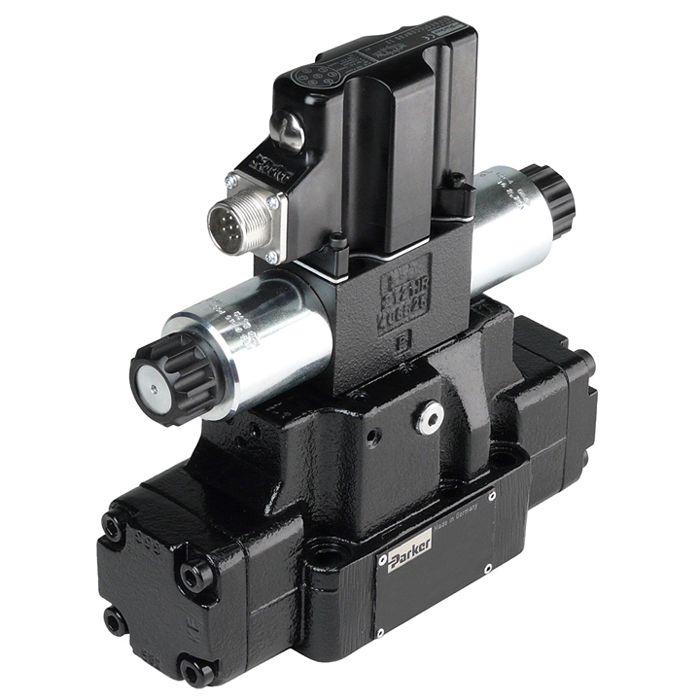

The pilot operated proportional directional control valve D41FB OBE works with barometric feedback of the main stage to the pressure reducing pilot valve. The pilot control pressure of 25 bar allows high flow rates at maximum stability.
The pilot operated proportional directional control valves D*1FB OBE are available in 4 sizes: D31FB - NG10 (CETOP 05) D41FB - NG16 (CETOP 07) D91FB - NG25 (CETOP 08) D111FB - NG32 (CETOP 10)
The digital onboard electronics is situated in a robust metal housing, which allows the usage under rough environmental conditions. The nominal values are factory set. The cable connection to a serial RS232 interface is available as accessory. The valve parameters can be edited with the common ProPxD software. The D41FB OBE valve works with barometric feedback of the main stage to the pressure reducing pilot valve. The pilot control pressure of 25 bar allows high flow rates at maximum stability. The innovative integrated regenerative function into the A-line (optional) allows energy saving circuits for differential cylinders. The hybrid version can be switched between regenerative mode and standard mode at any time.
Features: - Progressive flow characteristics for sensitive adjustment of flow rate - High flow capacity - Centre position monitoring optional - Energy saving A-regeneration optional - Switchable hybrid version optional
常用型号如下： D31FBE01CC1NF0010 D41FBE02FC4NF0010 D31FBR31EC4NF0010 D31FBE03CC4NKW010 D31FBE02EK4NKW010 D31FBE02EC5NKW010 D31FBE02EC4VS0010 D31FBE02EC4VKW010 D31FBE02EC4NS0010 D31FBE02EC4NKW010 D31FBE02EC4NF0010 D31FBE02EC1NS0010 D31FBE02EC1NKW010 D31FBE02DC4NKW010 D31FBE02DC4NF0010 D31FBE02DC2NKW010 D31FBE02DC1NKW010 D31FBE02CC4NS0010 D31FBE02CC4NKW010 D31FBE02CC4NG0010 D31FBE02CC4NF0010 D31FBE02CC2NS0010 D31FBE02CC2NKW010 D31FBE02CC2NF0010 D31FBE02CC1NKW010 D31FBE02CC1NJW010 D31FBE02CC1NF0010 D31FBE01EK1NKW010 D31FBE01EC4VW5010 D31FBE01EC4NW5010 D31FBE01EC4NS0010 D31FBE01EC4NJW010 D31FBE01EC4NF0810 D31FBE01EC4NF0010 D31FBE01EC2NKW810 D31FBE01EC1NKW010 D31FBE01EC1NF0010 D31FBE01DK2NKW010 D31FBE01DK1NKW010 D31FBE01DE1NKW010 D31FBE01DC4NF0010 D31FBE01DC2NKW010 D31FBE01DC1NS0010 D31FBE01DC1NF0010 D31FBE01CC4NKW810 D31FBE01CC4NJW010 D31FBE01CC4NG0010 D31FBE01CC4NF0010 D31FBE01CC2NM0010 D31FBE01CC2NKW810 D31FBE01CC2NF0010 D31FBE01CC1NJW010 D31FBE01CC1NF0010 D31FBB32EC4NF0010 D31FBB32EC1VF0010 D31FBB32EC1NS0010 D31FBB32EC1NKW010 D31FBB32DC4NS0010 D31FBB32DC4NJW010 D31FBB32DC1NS0010 D31FBB32DC1NKW010 D31FBB32DC1NF0010 D31FBB32CC4NKW010 D31FBB32CC4NF0010 D31FBB32CC2NKW010 D31FBB32CC1NKW010 D31FBB32CC1NF0010 D31FBB31EC4NS0010 D31FBB31DC4VF0010 D31FBB31DC4NKW010 D31FBB31DC4NF0010 D31FBB31DC1NF0010 D31FBB31CC4NJW010 D31FBB31CC4NG0010 D31FBB31CC4NF0010 D31FBB31CC1NKW010 D31FBE01CC1NG0042 D31FBE01CC4VF0042 D31FBE02CC4VF0042 D31FBE06CC4NF0042 D31FBB32CC1NG0042 D31FBE01CC4NF0842 D31FBE01CC4VG0042 D31FBB31CC1NF0042 D31FBE02CC1NG0042 D31FBA31CC1NF0042 D31FBE02CC1NS0042 D31FBA31CC4NF0042 D31FBE01CC4NS0042 D31FBB32CC2NS0042 D31FBE01CC1VF0042 D31FBB32CC4NS0042 D41FBE05FC4NJW010 D41FBE04FK4NF0810 D41FBE03FC4NKW010 D41FBE02FC5NKW010 D41FBE02FC5NJW010 D41FBE02FC4VJW010 D41FBE02FC4VG0010 D41FBE02FC4NS0010 D41FBE02FC4NJW810 D41FBE02FC4NJW010 D41FBE02FC4NG0010 D41FBE02FC4NF0010 D41FBE02FC2NKW010 D41FBE02FC2NJW010 D41FBE02FC2NG0810 D41FBE02FC2NF0010 D41FBE02FC1VF0010 D41FBE02FC1NS0010 D41FBE02FC1NKW010 D41FBE02FC1NJW010 D41FBE02FC1NG0010 D41FBE02FC1NF0010 D41FBE02CC5NKW010 D41FBE02CC4NS0010 D41FBE02CC2NJW010 D41FBE02CC1NS0010 D41FBE02CC1NKW010 D41FBE02CC1NJW010 D41FBE02BC5NKW010 D41FBE02BC4VM0010 D41FBE02BC4NJW010 D41FBE02BC1NKW010 D41FBE01FK2NJW010 D41FBE01FK1NKW010 D41FBE01FE2NKW010 D41FBE01FC5NKW010 D41FBE01FC4VJW010 D41FBE01FC4NS0010 D41FBE01FC4NM0010 D41FBE01FC4NKW010 D41FBE01FC4NJW010 D41FBE01FC4NG0010 D41FBE01FC4NF0010 D41FBE01FC2NS0010 D41FBE01FC2NKW810 D41FBE01FC2NKW010 D41FBE01FC2NJW010 D41FBE01FC2NF0810 D41FBE01FC2NF0010 D41FBE01FC1NS0010 D41FBE01FC1NKW010 D41FBE01FC1NJW010 D41FBE01FC1NF0010 D41FBE01CE2NKW010 D41FBE01CC4NJW010 D41FBE01CC4NJE010EE D41FBE01CC1NKW010 D41FBE01CC1NJW010 D41FBE01BK4NKW010 D41FBE01BC1NJW010 D41FBB32FC5NJW010 D41FBB32FC4VKW010 D41FBB32FC4VF0010 D41FBB32FC4NS0010 D41FBB32FC4NM0010 D41FBB32FC4NKW010 D41FBB32FC4NF0810 D41FBB32FC4NF0010 D41FBB32FC2NKW010 D41FBB32FC2NF0010 D41FBB32FC1NS0010 D41FBB32FC1NKW010 D41FBB32FC1NF0010XG188 D41FBB32FC1NF0010 D41FBB32CC4NF0010 D41FBB32CC1NS0010 D41FBB31FC4NS0010 D41FBB31FC4NM0010 D41FBB31FC4NF0010 D41FBB31FC2VKW010 D41FBB31FC1VF0010 D41FBB31FC1NKW010 D41FBB31FC1NG0010 D41FBB31FC1NF0010 D41FBB14FC4NKW010 D41FBB00FC4NKW010X840 D41FBB00FC4NF0810X821 D41FBB32FC1VF0042 D41FBE01FC1NG0042 D41FBE02FC4VF0042 D41FBE01FC4NF0842 D41FBE04FC4NF0842 D41FBB31FC4NG0042 D41FBE01FC1VF0042 D41FBB32FC4NG0042 D41FBB31FC2NF0042 D41FBE01FC4VF0042 D41FBE01FC5NF0042 D41FBE01FC5NG0042 D41FBB32FC2NS0042 D41FBB31FC2NS0042 D91FBE02HC5NKW010 D91FBE02HC4NW5010 D91FBE02HC4NKW010 D91FBE02HC4NJW010 D91FBE02HC4NG0010 D91FBE02HC4NF0010 D91FBE02HC2NS0010 D91FBE02HC2NKW810 D91FBE02HC2NKW010 D91FBE02HC2NJW010 D91FBE02HC2NF0010 D91FBE02HC1NS0010 D91FBE02HC1NKW010 D91FBE02HC1NF0010 D91FBE02EC5NKW010 D91FBE02EC4NKW010 D91FBE02EC4NJW010 D91FBE02EC2NKW010 D91FBE02EC1NS0010 D91FBE02EC1NKW010 D91FBE02EC1NJW010 D91FBE01HK1NKW010 D91FBE01HK1NJW010 D91FBE01HC5NJW010 D91FBE01HC4NS0010 D91FBE01HC4NKW010 D91FBE01HC4NJW010 D91FBE01HC4NG0010 D91FBE01HC4NF0810 D91FBE01HC4NF0010 D91FBE01HC2NKW010 D91FBE01HC2NF0810 D91FBE01HC2NF0010 D91FBE01HC1NS0010 D91FBE01HC1NKW010 D91FBE01HC1NJW810 D91FBE01HC1NJW010 D91FBE01HC1NF0010 D91FBE01EC5NJW010 D91FBE01EC4NKW010 D91FBE01EC4NF0810 D91FBE01EC1NJW010 D91FBB32HC4NS0010 D91FBB32HC4NG0010 D91FBB32HC2NS0010 D91FBB32HC2NKW010 D91FBB32HC1NKW010 D91FBB32HC1NF0010 D91FBB31HC4NF0010 D91FBB31HC2VKW010 D91FBB31HC2NS0010 D91FBB31HC2NKW010 D91FBB31HC2NF0010 D91FBB31HC1NF0010 D91FBB32HC4NF0042 D91FBE01HC1NG0042 D91FBE01HC1VF0042 D91FBE01HC4VF0042 D91FBE02HC1NG0042 D91FBB32HC1NG0042 D91FBE01HC5NF0042 D91FBB32HC4VG0042 D91FBB32HC2NG0042 D91FBE02HC2NG0042 D91FBE02HC4NS0042 D91FBE01HC2NS0042 D111FBE02LC2NKW010 D111FBE01LC2NJW010 D111FBE01LC2NF0010 D111FBE01LC1NKW010 D111FBE01LC1NJW810 D111FBB32LC2NG0010 D111FBB32LC2NF0010 D111FBB32LC1NG0010 D111FBB31LE1NKW010
点击此处查看Parker D_1FB系列先导式比例阀产品样本资料
点击此处查看Parker D_1FB系列先导式比例阀操作手册
